20K Servo Ultrasonic Plastic Welder

  • 20K Servo Ultrasonic Plastic Welder
  • 20K Servo Ultrasonic Plastic Welder
  • 20K Servo Ultrasonic Plastic Welder
  • 20K Servo Ultrasonic Plastic Welder

20K Servo Ultrasonic Plastic Welder

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CIF,EXW
    Transportation: Ocean,Air
    Place of Origin: China

Product Description

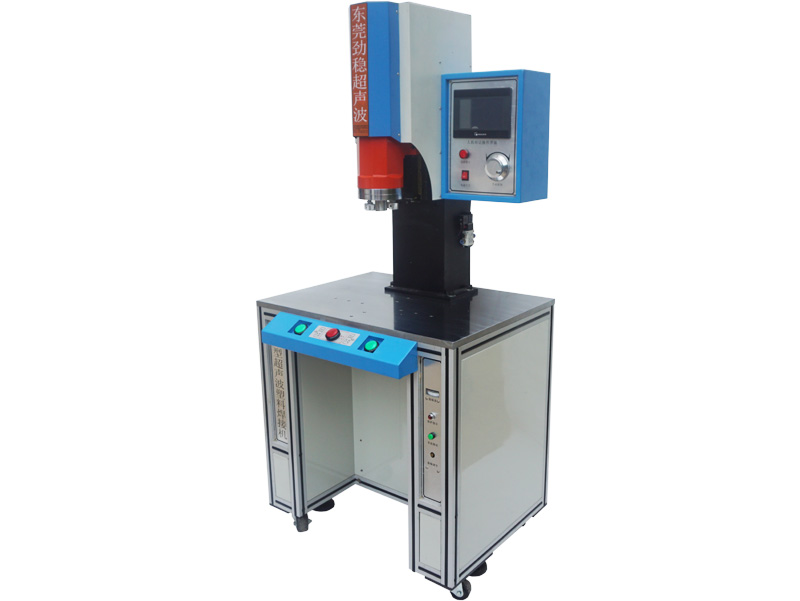

20K Servo Ultrasonic Plastic Welder

20K servo ultrasonic plastic welder Product features:

  • Luxury table type high-power ultrasonic machine.
  • Adopt linear guide rail, motor control machine rise and fall, convenient and quick.
  • Servo motor control stroke up and down, high accuracy, high stability
  • Electronic ruler positioning, PLC control, digital display mode, all data are subject to the number
  • The integral limit structure of welding head is adopted to ensure no deviation of welding.
  • Chassis quadrangle horizontal adjustment, convenient and fast die adjustment, high precision;
  • High precision dynamic triggering function, high welding stability
  • Digital welding parameter setting, intuitive and accurate;
  • Japanese original NTK vibrator, strong and stable output;
  • Titanium alloy amplitude converter, durable;
  • Frequency modulation and frequency automatic compensation circuit;
  • Complete set of high-quality imported originals, reliable performance;
  • Without cylinder, avoid air pressure instability, resulting in the uncertainty factor;
    20K servo ultrasonic plastic welding machine specifications:
    ◆ Specification: JW-2020
    Output power: 2000W
    ◆ frequency: 20KHZ
    ◆ Motor power :800W
    Input voltage: 220V (single-phase)
    Maximum input power: 2.0kW
    ◆ Output time: "Fuji" time control 0.01~ 6S
    ◆ Current indicator: Output amplitude indicator
    ◆ Motor stroke :150mm
    ◆ Maximum melting accuracy :0.01mm

    Jinwang 20K servo ultrasonic plastic welding machine parameters:
    ◆1. Main shaft: Taiwan global G ball screw, Switzerland Swy linear guide rail, light transmission.
    ◆2. Display: electronic ruler digital display device, accurate positioning, clear at a glance.
    ◆3. Motor: Adopt Japan Ankawa servo motor and drive system, safe and reliable, durable.
    ◆4. Ultrasonic circuit: Adopt American energy
    ◆5. Japanese power tube.
    ◆6. Japanese NTK vibrator, with stable wave, strong power and durability.
    ◆7. Contactor: Taiwan Tai 'an CN11.
    ◆8.PLC: Mitsubishi control is adopted.
    Jinwang 20K servo ultrasonic plastic welding machine suitable for the industry
    Suitable for electronic industry (such as mobile phone accessories, mobile phone case, charger, Bluetooth, USB connector)
    Automobile industry (e.g., body plastic parts, automobile gauges, lamps, mirrors, sunshades, bumpers, water tanks)
    Toy stationery (such as folders, albums, folding boxes, pen cases, plastic toys)
    As well as the medical industry, home appliances industry, non-woven clothing, office supplies, packaging industry

20K Servo Ultrasonic Plastic Welder20K Servo Ultrasonic Plastic Welder32

Dongguan Jinwang Ultrasonic Equipment Co.,Ltd

 Dongguan Jinwen Ultrasonic Equipment Co.,Ltd is a production,research and development of ultrasonic plastic welding and Ultrasonic Cleaning Equipment of large manufactures.In modern society, ultrasonic technology is widely used in all walks of life, such as electronics, machinery and other industries useful ultrasonic cleaning machine, ultrasonic welding machine and ultrasonic spot welding machine;Scientific research units use ultrasound for detection;The application of ultrasound in medical treatment and so on.
